High strength Electric Metal Enclosure Box with 1.5mm Galvanized sheet
High strength Electric Metal Enclosure Box with 1.5mm Galvanized sheet
Item Number:

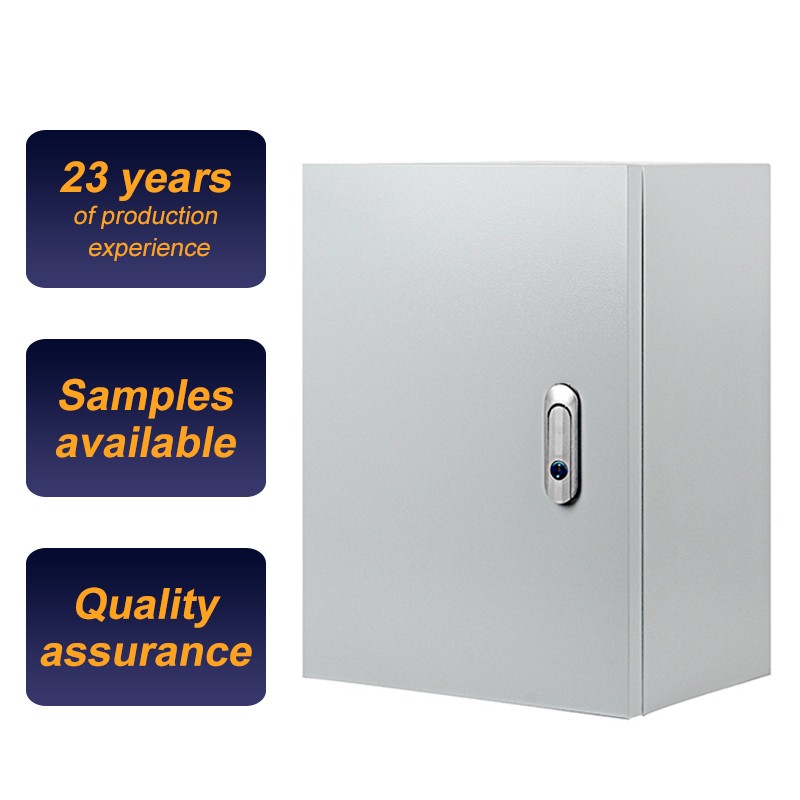

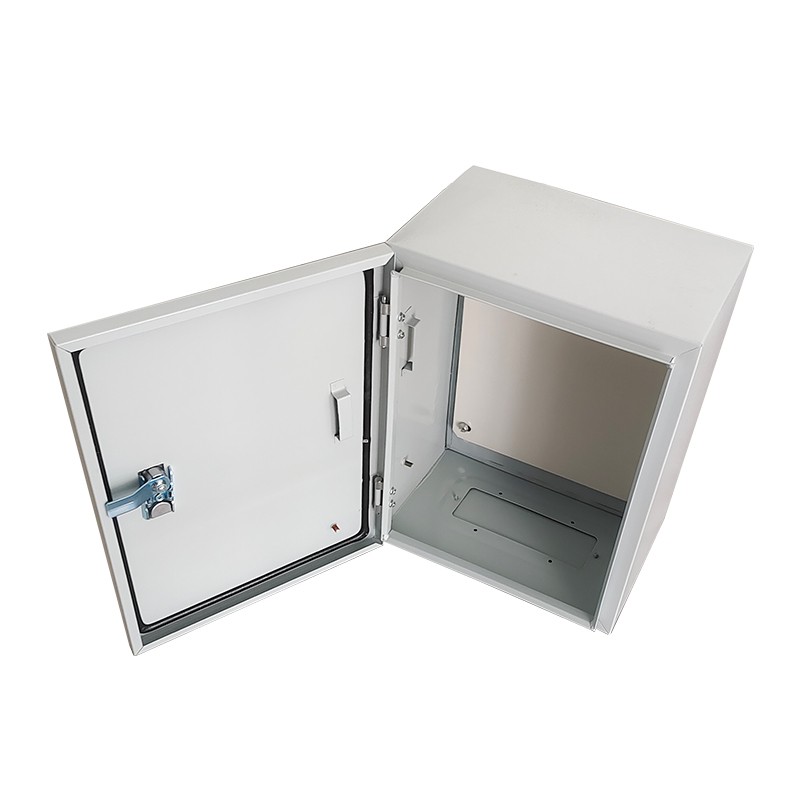

Wall mounted electrical distribution box. Metal cabinet-style design with door. IP65 environmental protection, which allows the distribution box to be installed outside. Completely empty box, except for a mounting plate fixed to the bottom of the cabinet. Excellent quality and very robust.
- Material: Cold rolled steel and galvanized sheet
- Package: Standard Carton
- Delivery time: 7-15 days for order quantity lower than 5000pcs; For more quantity, usually 20 days.
- MOQ: 100pcs
Features
Painted in gray RAL 7035.The color of the mounting plate can be customized in different colors.
Zinc alloy, stainless steel, 304 stainless steel locks are available, all locks can be opened with the same key.
A rubber gasket can be provided at the location of the holes.Rubber gasket on the entire door profile to ensure to watertight.
IP65 environmental protection, against humidity and water.
The following sheet is a comparison sheet of metal enclosure box size.
Dimensions not in the sheet can be customized by providing dimensions or drawings.
| SKU\Item | Height(mm) | Inch | Width(mm) | Inch | Depth(mm) | Inch |
| 250x300x140 | 300 | 11.8" | 250 | 9.84" | 140 | 5.51" |
| 300x400x140 | 400 | 15.75" | 300 | 11.8" | 140 | 5.51" |
| 300*400*200 | 400 | 15.75" | 300 | 11.8" | 200 | 7.87" |
| 300*400*250 | 400 | 15.75" | 300 | 11.8" | 250 | 9.84" |
| 400*500*140 | 500 | 19.68" | 400 | 15.75" | 140 | 5.51" |
| 400*500*200 | 500 | 19.68" | 400 | 15.75" | 200 | 7.87" |
| 400*500*250 | 600 | 23.62" | 400 | 15.75" | 250 | 9.84" |
| 500*600*200 | 600 | 23.62" | 500 | 19.68" | 200 | 7.87" |
| 500*600*250 | 700 | 27.55" | 500 | 19.68" | 250 | 9.84" |
| 500*700*200 | 700 | 27.55" | 500 | 19.68" | 200 | 7.87" |
| 500*700*250 | 700 | 27.55" | 500 | 19.68" | 250 | 9.84" |
| 600*800*200 | 800 | 31.49" | 600 | 23.62" | 200 | 7.87" |
| 600*800*250 | 800 | 31.49" | 600 | 23.62" | 250 | 9.84" |
| 800*1000*200 | 1000 | 39.37 | 800 | 31.49" | 200 | 7.87" |
| 800*1000*250 | 1000 | 39.37 | 800 | 31.49" | 250 | 9.84" |
| 1000*1200*250 | 1200 | 47.24 | 1000 | 39.37 | 250 | 9.84" |
The following sheet is a comparison sheet of metal enclosure box thickness.
Dimensions not in the sheet can be customized by providing.
| Gauge (Ga.) | standard steel(inch) | Galvanized Steel (inch) | standard steel(mm) | Galvanized Steel (mm) |
| 14 | 0.0747 | 0.0785 | 1.89738 | 1.9939 |
| 15 | 0.0673 | 0.071 | 1.70942 | 1.8034 |
| 16 | 0.0598 | 0.0635 | 1.51892 | 1.6129 |
| 17 | 0.0538 | 0.0575 | 1.36652 | 1.4605 |
| 18 | 0.0478 | 0.0516 | 1.21412 | 1.31064 |
| 19 | 0.0418 | 0.0456 | 1.06172 | 1.15824 |
| 20 | 0.0359 | 0.0396 | 0.91186 | 1.00584 |
| 21 | 0.0329 | 0.0366 | 0.83566 | 0.92964 |
| 22 | 0.0299 | 0.0336 | 0.75946 | 0.85344 |
| 23 | 0.0269 | 0.0306 | 0.68326 | 0.77724 |
| 24 | 0.0239 | 0.0276 | 0.60706 | 0.7004 |
| 25 | 0.0209 | 0.0247 | 0.53086 | 0.62738 |
| 26 | 0.0179 | 0.0217 | 0.45466 | 0.55118 |
| 27 | 0.0164 | 0.0202 | 0.41656 | 0.51308 |
| 28 | 0.0149 | 0.0187 | 0.37846 | 0.47498 |
| 29 | 0.0135 | 0.0172 | 0.3429 | 0.43688 |
| 30 | 0.012 | 0.0157 | 0.3048 | 0.39878 |
| 31 | 0.0105 | 0.0142 | 0.2667 | 0.36068 |
| 32 | 0.0097 | 0.0134 | 0.24638 | 0.34036 |
